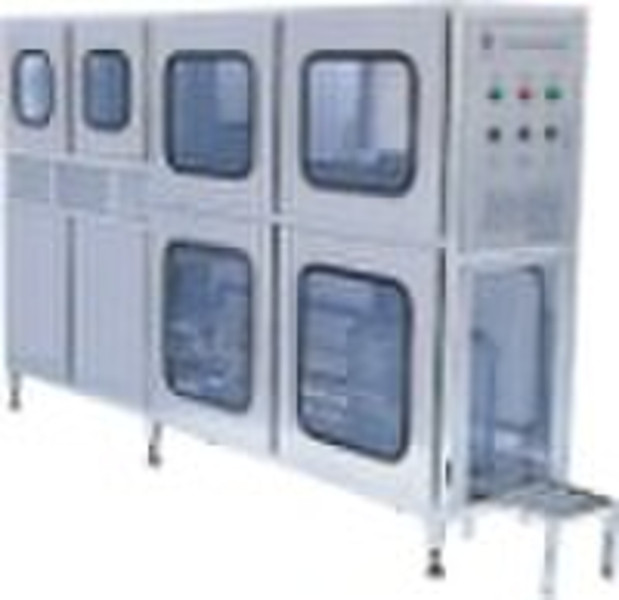

5 gallon water filling machinery (200B/H)

5 gallon water filling machine,filling machinery,barrelled water filling machine,it can washing,filing,capping in one machine... 1..the operation procedures of microcomputer bottle washing,filling device from the bottle entering;disinfectant swashing;pure water swashing;bottle dropped down;bottle seated on the bottle pushing supporter;pure water feeding;cap-covering;capping;output of finished water,is controlled by PLC with the functions of automatic finish,precise orientation,little manpower and low working intensity. 2.The complete set of equipment is manufactured by high-tension stainless steel materials and stainless plate steel with precise argon arc,infrequent distortion and fair welding veins. Capacity:200 bottles per hour. Specification TypeXG-100/J(200buckets/H)Power 220V±5% 50Hz380V±5% 50HzInput power( KW)2.24KWBottle's spec(mm)270×490×Φ56 230×415×Φ56Bottle's volume5gallons or 3 gallonCapsule's spec(mm)Φ58×40The capability of compress airP≥0.6MPaWash bottle's capability200buckets/HBottle filling capacity200buckets/HOut size(mm)2950×780×1520Weight(kg)N.W(Kg)325The dircetion of bottle outputBottle output with left ro right direction
