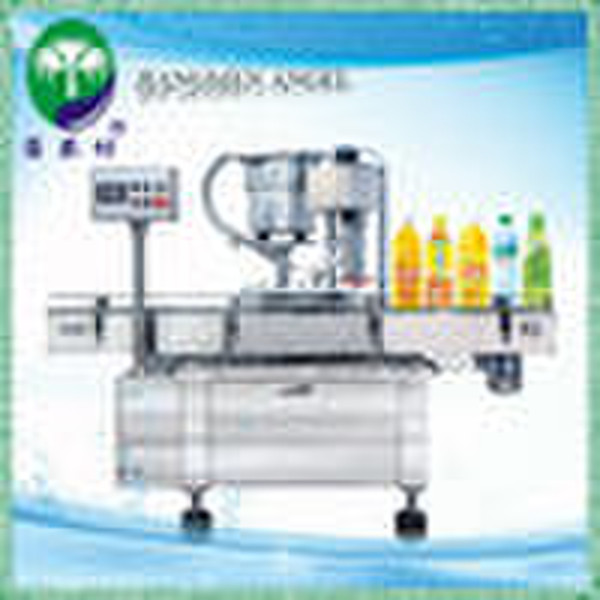

bottle mineral water filling machine (3 in 1)

bottle mineral water filling machine (3 in 1) automatic filling machineincludes rinser,filler and capper .It has small capacity and also has big capacity.... the water filling machine's specification1) Capacity: a) 300 - 1500mL bottles: 1000-2300 bottles/hour b) 1.5L bottles: 1,000 bottles/hour 2) Functions: washes bottles, fills bottles with water, caps lids 3) Bottle specifications: a) Diameter of mouth: 22 - 30mm b) Diameter of bottle: 60 - 88mm c) Height: 160 - 320mm 4) Washing system: a) 12 washing positions b) Motor power: 0.55kW c) Size: 900 x 800 x 1,600mm d) Weight: 250kg 5) Filling system: a) 16 filling positions b) Output: 1,500 - 3,000 bottles/hour c) Motor power: 0.9kW d) Size: 1,000 x 900 x 2,000mm e) Weight: 500kg 6) Capping system: a) Output: 1,500 - 3,000 bottles/hour b) Motor power: 0.55kW c) Size: 900 x 700 x 1,800mm d) Weight: 500kg Process: Bottle Washing + Filling + Capping It is a full-automatic multiple-function washing, filling and capping unit. Three parts connect with one line .It is used in washing, filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automation. It is the best filling equipment in China.
